The RS422 Interface Board RSB001 converts 5V TTL or CMOS single-ended encoder signals to RS422 differential signals. The ASSIST Interface Board and the ASSIST software allow to configure and/or program the encoder.

Input signals

single-ended 5V TTL/CMOS

Output signals

Differential RS422


0 – 2 MHz


5 V, 5 mA


-40 to 85°C

All ID-encoders with A/B outputs

All IT encoders with A/B/I outputs

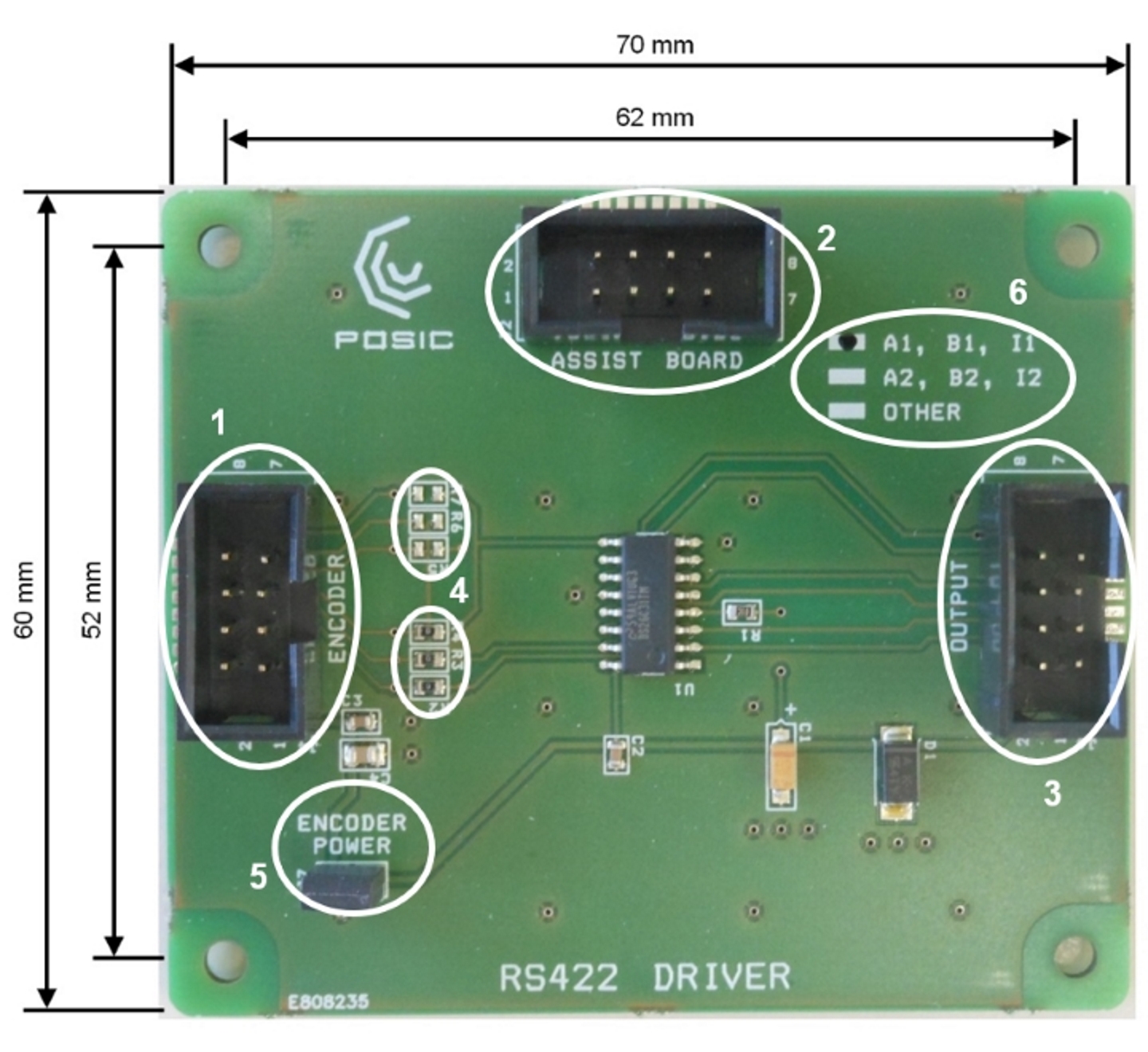

RS422 interface Board RSB001 with dimensions and

1) connector to encoder,

2) connector to ASSIST Interface Board,

3) RS422 outputs,

4) input selectors for encoder 1 or 2,

5) jumper to select encoder supply voltage and

6) indication for inputs (encoder 1 or 2).

Schematic diagram of the RS422 interface Board RSB001.

RS-422 Schnittstelle

$ 92.79 Unit Price
Total Price

Eingänge A1, B1, I1 für Encoder ID1102, ID4501 und IT3403
Eingänge A2, B2, I2 für Encoder IT3402 und IT5602
Siehe Datenblatt Tabelle 1

Nur Standard RS-422 Ausgänge
Siehe Datenblatt Tabelle 2

Dies betrifft 8-Pin DIN-41651
Stecker J2, J4, J6 und Brücke J7
Siehe Datenblatt Tabelle 3
