Ordering Code
Invalid order code
| Qty | Unit price |
|---|---|
| 1+ | $ 56.80 |
| 10+ | $ 38.08 |
| 20+ | $ 29.35 |
| 50+ | $ 22.60 |
| 100+ | $ 19.39 |
Dual-track codewheel with 44 periods for the AP9600C encoder.
The codewheel consists of a PCB with copper patterns on the front side and with a plain copper surface on the backside. The backside copper layer acts as a screen against metallic structures behind the codewheel. The codewheel can thus be mounted on a metallic or non-metallic hub.
The codewheel contains 3 half-holes with diameter 1 mm that can be used for alignment.
|
Number of periods |
44 |
|
Outer diameter |
28.2 mm |
|
Inner diameter |
12 mm |
|
Readout Radius 1 |
8.5 mm |
|
Readout Radius 2 |
12.2 mm |
|
Thickness |
0.9 mm |
This codewheel is compatible to the AP9600C encoder

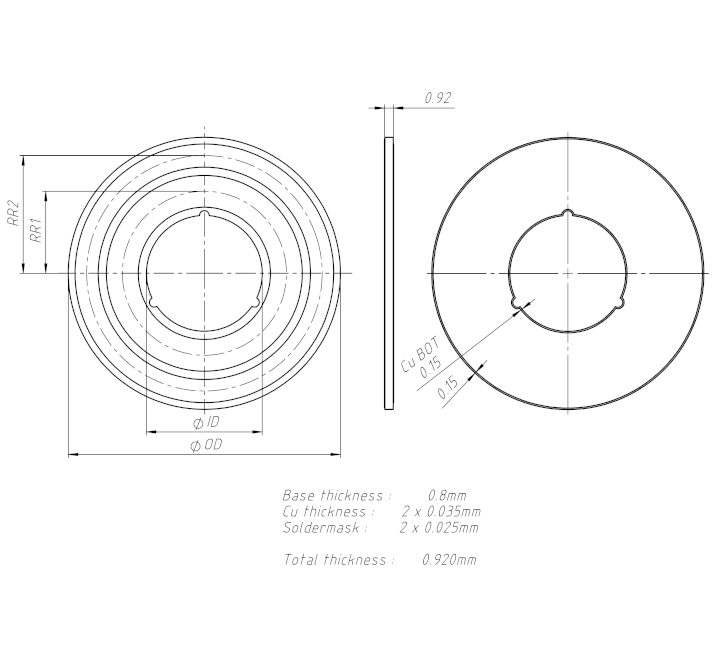

Technical drawing of the 2-track codewheel.
|
Codewheel |
TPCA21-044 |
|
Periods |
44 |
|
Outer Diameter |
28.2 mm |
|
Inner Diameter |
12 mm |
|
Readout Radius 1 |
8.5 mm |
|
Readout Radius 2 |
12.2 mm |
|
Thickness |
0.9 mm |
