Scales

- Scale for ID encoders

- PCB with 1 track of copper stripes

- Period length 1.2 mm

- Length 205 mm

- Scale for ID encoders

- PCB with 1 track of copper stripes

- Period length 1.28 mm

- Length 550 mm

- Scale for ID encoders

- Flex-PCB with 1 track of copper stripes

- Period length 1.2 mm

- Length 205 mm

- Scale for IT encoders

- PCB with 2 tracks of copper stripes

- Period length 1.2 mm

- Length 205 mm

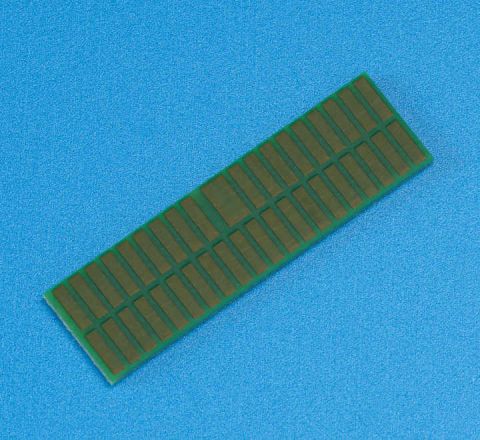

- Scale for AP encoders

- PCB with 2 tracks of copper stripes

- 2 Nonius-tracks with unequal periods

- Absolute over 8 periods = 9.6 mm

- Length 537 mm

- Scale for AP encoders

- PCB with 2 tracks of copper stripes

- 2 Nonius-tracks with unequal periods

- Absolute over 16 periods = 19.2 mm

- Length 537 mm

- Scale for AP encoders

- PCB with 2 tracks of copper stripes

- 2 Nonius-tracks with unequal periods

- Absolute over 32 periods = 38.4 mm

- Length 537 mm
