Ordering Code
Invalid order code
| Qty | Unit price |
|---|---|
| 1+ | $ 43.31 |
| 10+ | $ 26.61 |
| 20+ | $ 18.90 |
| 50+ | $ 13.47 |
| 100+ | $ 11.18 |

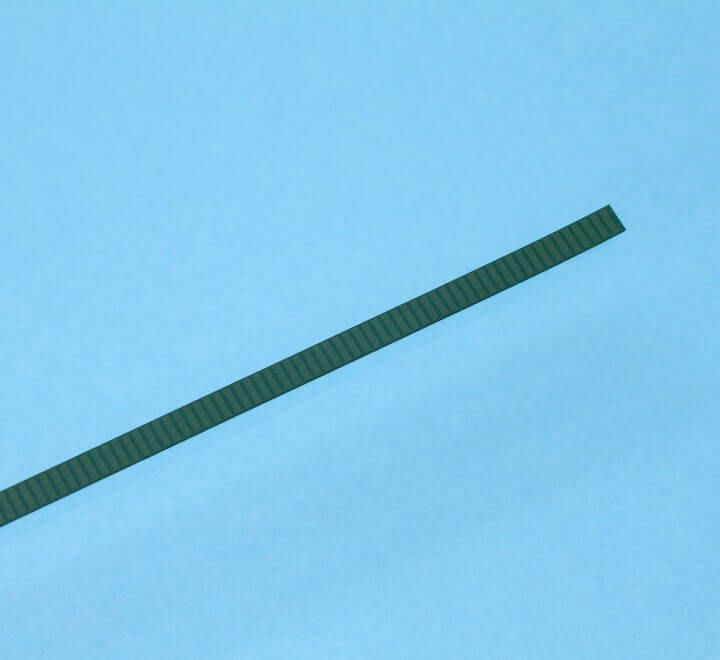

Single-track flexible linear scale with period length 1.2 mm for ID encoders.
The scale consists of a thin PCB with copper patterns on the front side and with an acrylic adhesive on the backside. The scale can only be mounted on a non-metallic surface.
|
Period length |
1.2 mm |
|
Width |
3.7 mm |
|
Length |
205 mm |
|
Thickness |
0.2 mm |
The scale can be cut to the desired length
This scale can only be used on non-metallic surfaces
This scale is compatible to the following encoders:
- ID1102L
- ID4501L
|
Linear scale |
TPFS01 |
|
Period Lenght |
1.2 mm |
|
Width |
3.7 mm |
|
Thickness |
0.2 mm (flexible) |
|
Length |
up to 205 mm |
