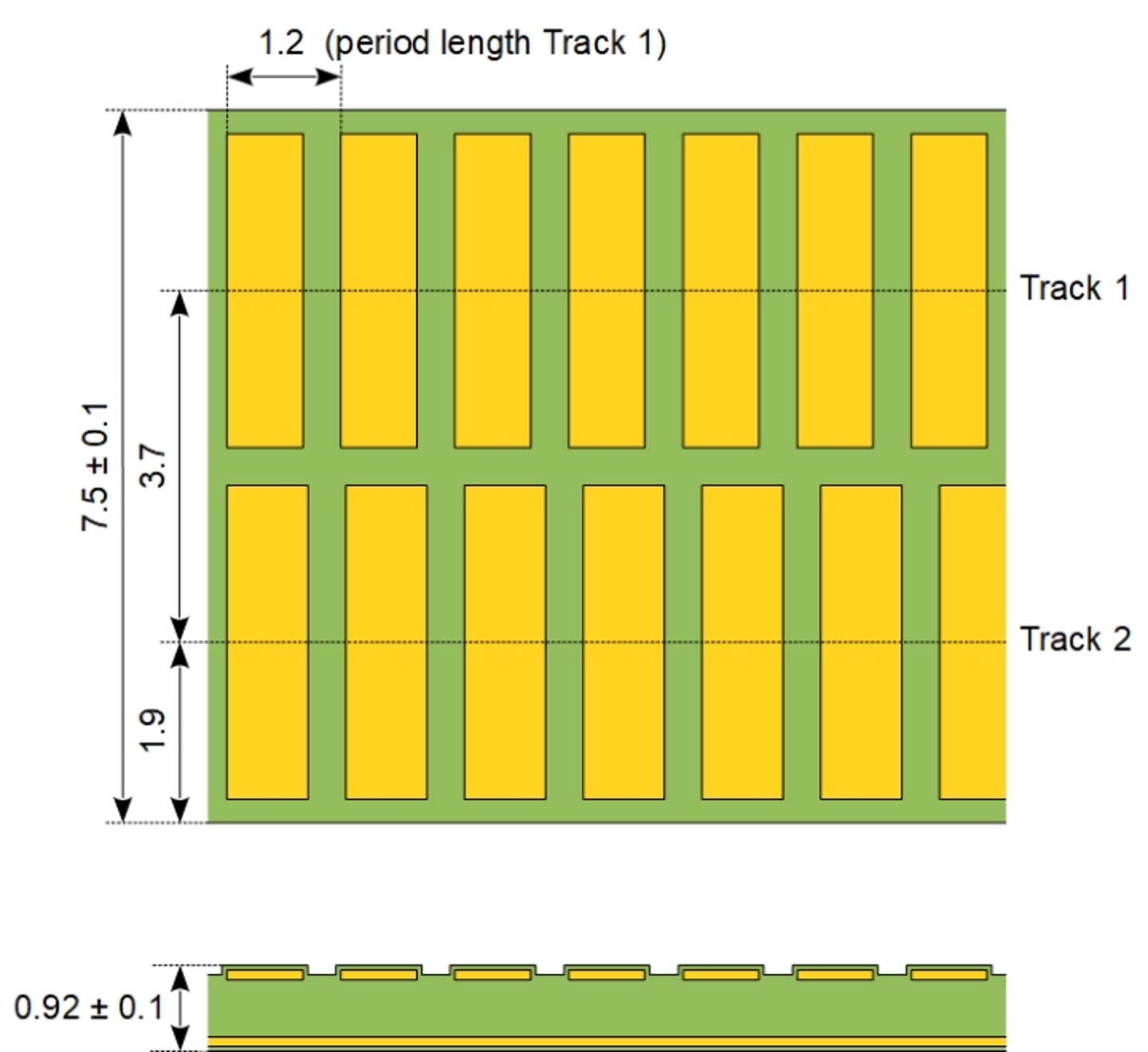

Dual-track linear scale for AP encoders. It contains a Nonius-pattern with absolute stroke 38.4 mm, consisting of track 1 with 32 periods of 1.2 mm and track 2 with 31 periods of 1.2387 mm.

The scale consists of a PCB with copper patterns on the front side and with a plain copper surface on the backside. The backside copper layer acts as a screen against metallic structures behind the scale. The scale can thus be mounted on a metallic or non-metallic surface.

The scale can be aligned against a metal edge, the edge height must be less than 0.2 mm.

zip
3D Model TPLA32
(Size:1.8 MB)

N1 = 32, Period length 1.2 mm

N2 = 31, Period length 1.2387 mm

Absolute stroke

38.4 mm

Width

7.5 mm

Length

538 mm

Thickness

0.92 mm

Scale can be cut to the desired length

This scale is compatible to the following encoders:

  • AP3403L
  • AP5603L
  • AP9200L
  • AP9201L

Scale Type

TPLA32

Period Lenght

1.2 mm

Width

7.5 mm

Thickness

0.73 mm

Absolute Stroke

38.4 mm

Scale Length

up to 538 mm

Absolute Linear Scale TPLA32

$ 0.00 Unit Price
Total Price

Dual-track scale for absolute encoders AP3403L and AP5603L

Maximum absolute stroke 38.4 mm
