Ordering Code

Invalid order code
QtyUnit price
1+$ 43.33
10+$ 26.64
20+$ 18.92
50+$ 13.50
100+$ 11.20
zip
3D Model TPLD03
(Size:657.2 KB)

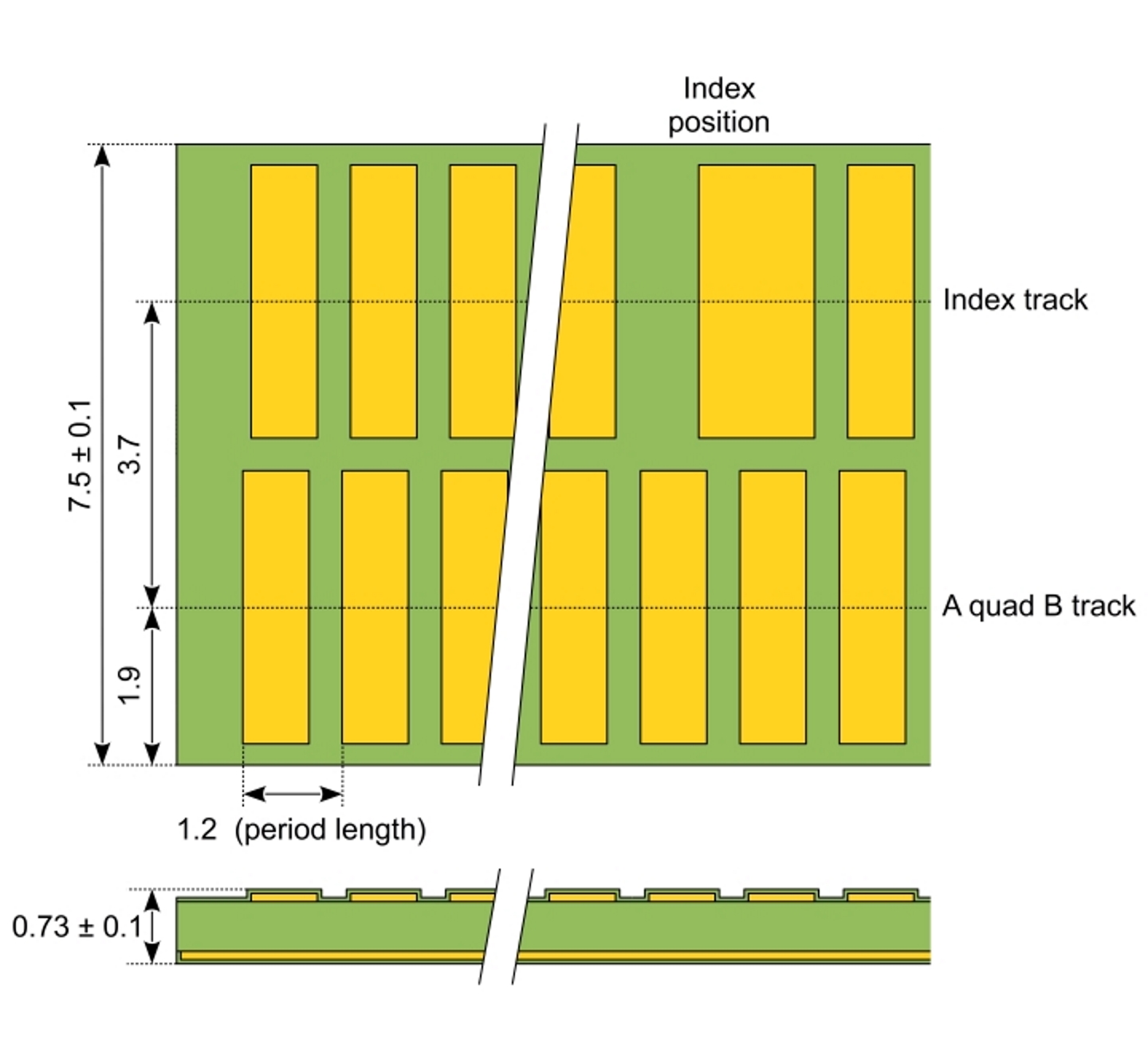

Dual-track linear scale with period length 1.2 mm for IT encoders with length 205 mm and centered index.

The scale can be cut to length by cutting, sawing or machining.

The scale consists of a PCB with copper patterns on the front side and with a plain copper surface on the backside. The backside copper layer acts as a screen against metallic structures behind the scale. The scale can thus be mounted on a metallic or non-metallic surface.

The scale can be aligned against a metal edge, the edge height must be less than 0.2 mm.

zip
3D Model TPLD03
(Size:657.2 KB)

Period length

1.2 mm

Width

7.5 mm

Length

205 mm

Thickness

0.73 mm

Scale can be cut to the desired length

Index-position is in the center

This scale is compatible to the following encoders:

  • IT3402L
  • IT5602L

Linear scale

TPLD03

Length

up to 205 mm

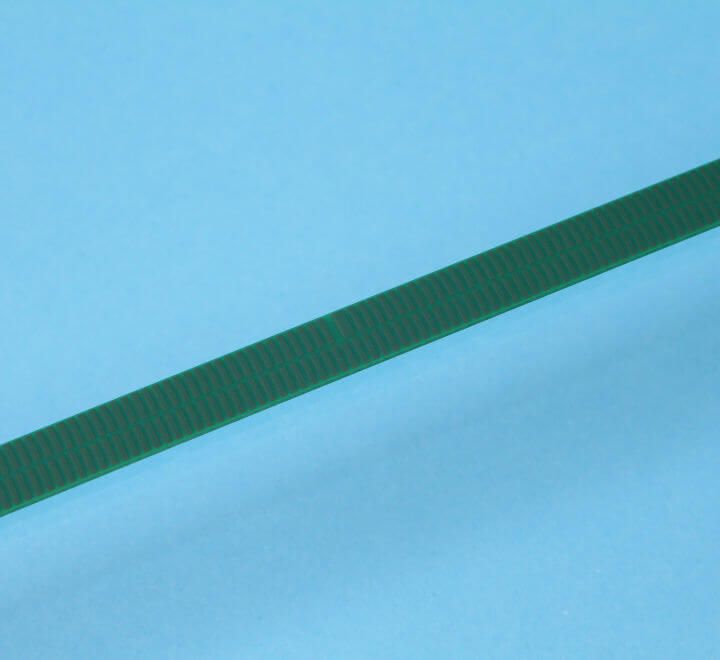

Linear Scale with Index TPLD03

$ 0.00 Unit Price
Total Price

Dual-track scale for encoders IT3402L and IT5602L

TPLD03
