Ordering Code

Invalid order code
QtyUnit price
1+$ 60.75
10+$ 44.02
20+$ 36.09
50+$ 29.25
100+$ 25.61
zip
3D Model TPLA16-036
(Size:119.3 KB)

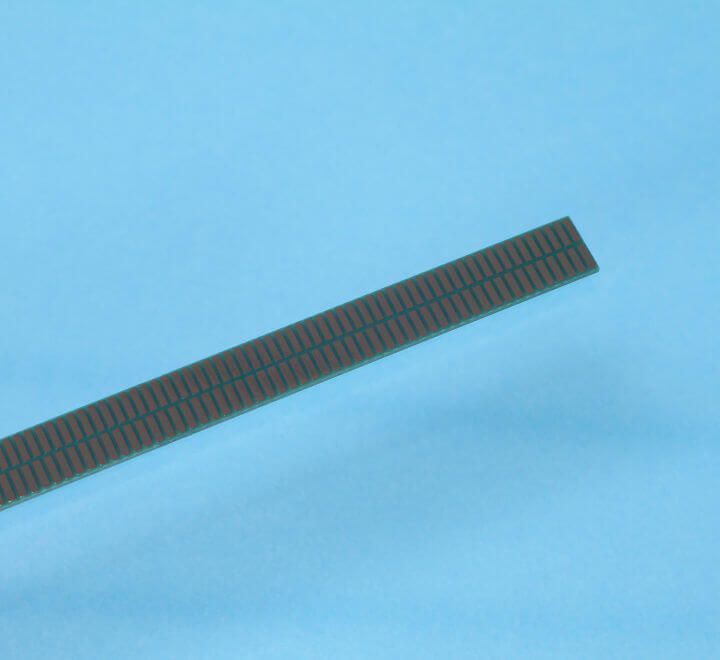

Dual-track linear scale for AP encoders. It contains a Nonius-pattern with absolute stroke 19.2 mm, consisting of track 1 with 16 periods of 1.2 mm and track 2 with 15 periods of 1.28 mm.

The scale consists of a PCB with copper patterns on the front side and with a plain copper surface on the backside. The backside copper layer acts as a screen against metallic structures behind the scale. The scale can thus be mounted on a metallic or non-metallic surface.

The scale can be aligned against a metal edge, the edge height must be less than 0.2 mm.

zip
3D Model TPLA16-036
(Size:119.3 KB)

N1 = 16, Period length 1.2 mm

N2 = 15, Period length 1.28 mm

Absolute stroke

19.2 mm

Length

35.9 mm

Width

7.5 mm

Thickness

0.77 mm



The scale can be cut to the desired length

This scale is compatible to the following encoders:

  • AP3403L
  • AP5603L
  • AP9200L
  • AP9201L

Dual-track absolute linear scale for POSIC's AP- encoders. The two tracks form a Nonius-scale with absolute stroke 19.2 mm

Absolute Linear Scale TPLA16-036

$ 60.75 Unit Price
Total Price

TPLA16-036
