Features:

  • Highly miniaturized: 8 x 10 x 0.8 mm
  • Outputs SSI
  • Insensitive to magnetic interference fields
  • Robust against oil grease, liquids, dust, particles
  • Programmable resolution and max speed
  • Optional with holder, cable, and connector

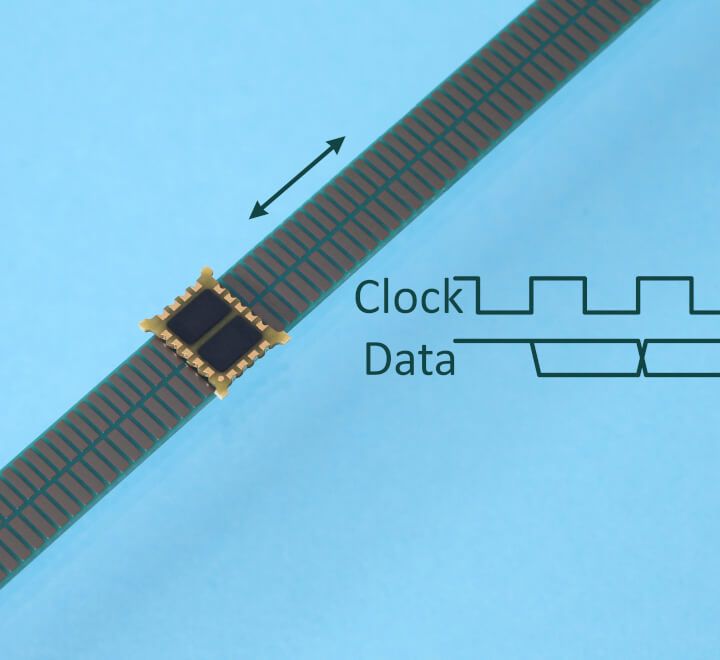

The AP5603L absolute encoder kit consists of an encoder and a linear scale. The encoder consists of two integrated circuits in a PCB housing. Each circuit provides an SSI output, optional in Gray or binary code. The linear scale is a PCB with passive copper strips arranged in 2 tracks with an unequal number of periods N1 and N2. The absolute position is calculated by subtracting the two SSI values. The algorithm for this calculation is available from POSIC.

Options like filter-setting and Gray/binary code are user-programmable or can be programmed ex-factory.

pdf
Datasheet AP5603L
(Size:387.2 KB)
pdf
Datasheet EPT
(Size:332.8 KB)
pdf
Assembly Guide
(Size:356.5 KB)
zip
3D Model 5602
(Size:239.9 KB)
zip
3D Model TPLA08-028
(Size:81.3 KB)
zip
3D Model TPLA16-036
(Size:119.3 KB)
zip
3D Model TPLA32-055
(Size:188.2 KB)

Output signals

SSI

Absolute stroke

up to 38.4 mm

Resolution

down to 73 nm

Supply

5V, 30 mA

Temperature

-20 to 100°C

Airgap

0.1 – 0.5 mm

Scale type TPLA08-028 TPLA16-036 TPLA32-055
Absolute Stroke 9.6 mm 19.2 mm 38.4 mm
Scale Length 27.5 mm 35.9 mm 54.6 mm
Width 7.5 mm 7.5 mm 7.5 mm
Thickness 0.77 mm 0.77 mm 0.77 mm

Drawing

Dual-track absolute linear scale for POSIC's AP- encoders. The two tracks form a Nonius-scale with absolute stroke 9.6 mm

Dual-track absolute linear scale for POSIC's AP- encoders. The two tracks form a Nonius-scale with absolute stroke 19.2 mm

Dual-track absolute linear scale for POSIC's AP- encoders. The two tracks form a Nonius-scale with absolute stroke 38.4 mm

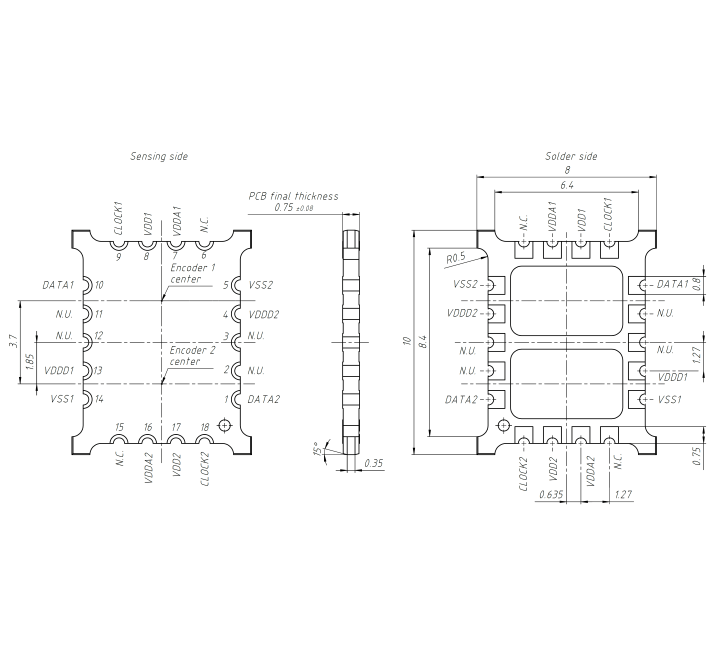

Technical drawing of absolute inductive encoder chip AP5603

Encoder dimensions (mm).

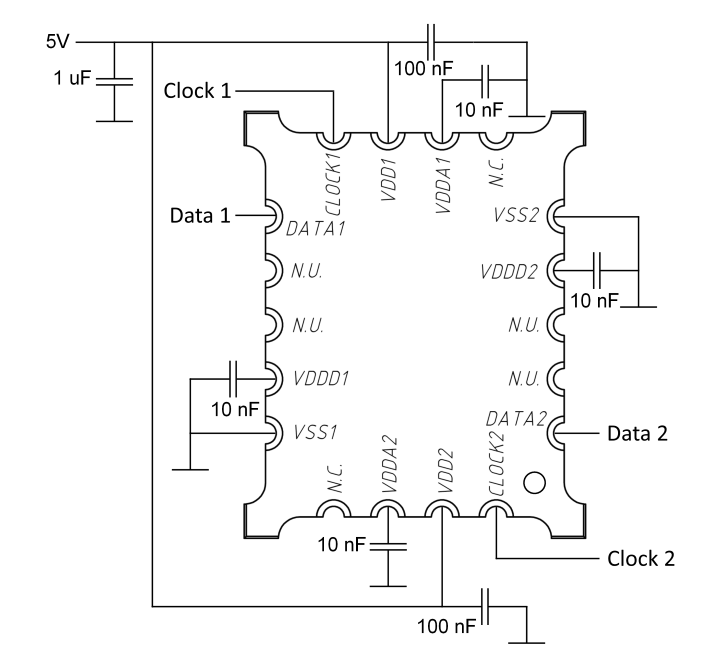

Schematic diagram for the AP5603 absolute encoder chip

Recommended schematic.

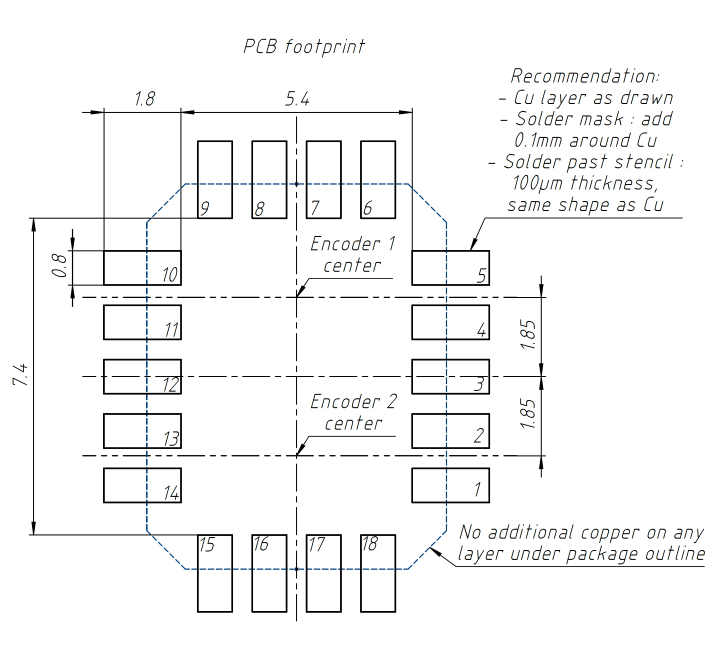

Recommended footprint for the AP5603 absolute encoder chip

Recommended footprint.

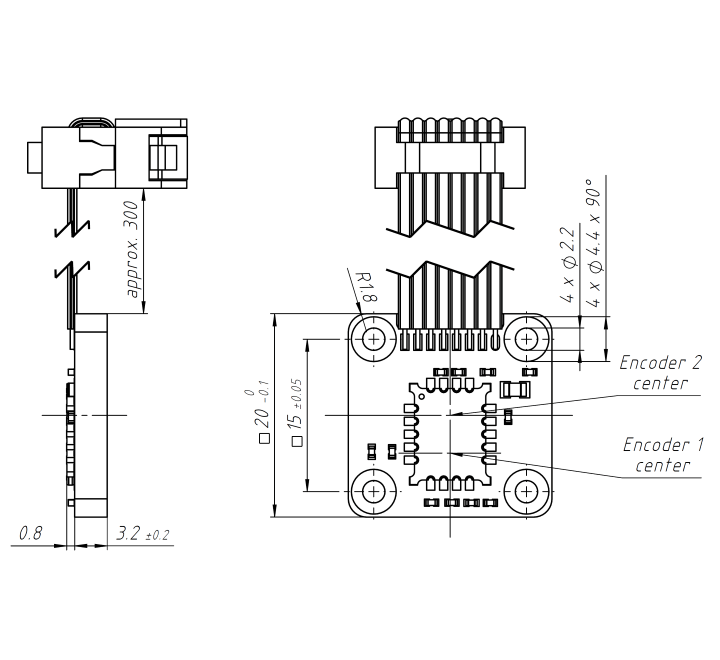

Absolute encoder chip AP5603 on holder type A with flat ribbon cable

Dimensions (mm) of AP5603 encoder on encoder-holder type A with flat cable (pitch 1.27 mm) and 8-pin DIN41651 connector.

Absolute Linear Encoder Chip AP5603L

$ 103.49 Unit Price
Total Price

Display price and ordering code for the encoder or

for the Evaluation & Programming Tool

Programmable by means of POSIC’s

Evaluation & Programming Tool or

pre-programmed ex-factory

Orientation of the encoder

with respect to the scale

See datasheet Table 1

Maximum speed for TPLA-scales

See datasheet Table 2

Binary or Gray code

See Datasheet Table 3

LookUp Table to compensate the

periodic non-linearity of the scale

See datasheet table 4

Dual-track Nonius scales

TPLA08, TPLA16 and TPLA32

See Datasheet Table 5

Holder on which the encoder is mounted

See datasheet table 6

Standard cable: 0 to 100°C

High-temp cable: -40 to 125°C

See datasheet Table 7

See datasheet Table 8

For Evaluation & Programming Tool:

8-pin connector DIN 41651

Select the total number of encoders

(The photo always shows 2 encoder

independent of the number of encoders selected)

Blue plastic enclosure Protects the

Interface Board against mechanical

impact and dust/particles
