Important!

The AP9201L encoder is connected to the Evaluation & Programming Tool EPT via the Module Driver Board MDB001. In addition to the EPT, the Module Driver Board MDB001 must be ordered.

Features:

  • Highly miniaturized: 20 x 20 x 3.9 mm
  • Outputs SSI
  • Insensitive to magnetic interference fields
  • Robust against oil grease, liquids, dust, particles
  • Programmable resolution and max speed
  • Optional with holder, cable, and connector

The AP9201L absolute encoder kit consists of an encoder and a linear scale. The encoder consists of two inductive position sensors that read a Nonius scale, a microcontroller that calculates the absolute position and an SSI interface. The linear scale is a PCB with passive copper strips arranged in 2 tracks with an unequal number of periods N1 and N2.

Options like the orientation encoder to scale and the maximum speed are field-programmable or can be programmed ex-factory.

pdf
Datasheet AP9201L
(Size:609.5 KB)
pdf
Datasheet EPT
(Size:332.8 KB)
pdf
Assembly Guide
(Size:356.5 KB)
zip
3D Model 9201
(Size:547.5 KB)
zip
3D Model TPLA08-028
(Size:81.3 KB)
zip
3D Model TPLA16-036
(Size:119.3 KB)
zip
3D Model TPLA32-055
(Size:188.2 KB)

Output signals

SSI

Absolute stroke

up to 38.4 mm

Resolution

down to 0.02 µm

Supply

5V, 30 mA

Temperature

-20 to 100°C

Airgap

0.1 – 0.5 mm

Scale type TPLA08-028 TPLA16-036 TPLA32-055
Absolute stroke 9.6 mm 19.2 mm 38.4 mm
Scale length 27.5 mm 35.9 mm 54.6 mm
Width 7.75 mm 7.5 mm 7.5 mm
Thickness 0.77 mm 0.77 mm 0.77 mm
Drawing Dual-track absolute linear scale for POSIC's AP- encoders. The two tracks form a Nonius-scale with absolute stroke 9.6 mm Dual-track absolute linear scale for POSIC's AP- encoders. The two tracks form a Nonius-scale with absolute stroke 19.2 mm Dual-track absolute linear scale for POSIC's AP- encoders. The two tracks form a Nonius-scale with absolute stroke 38.4 mm

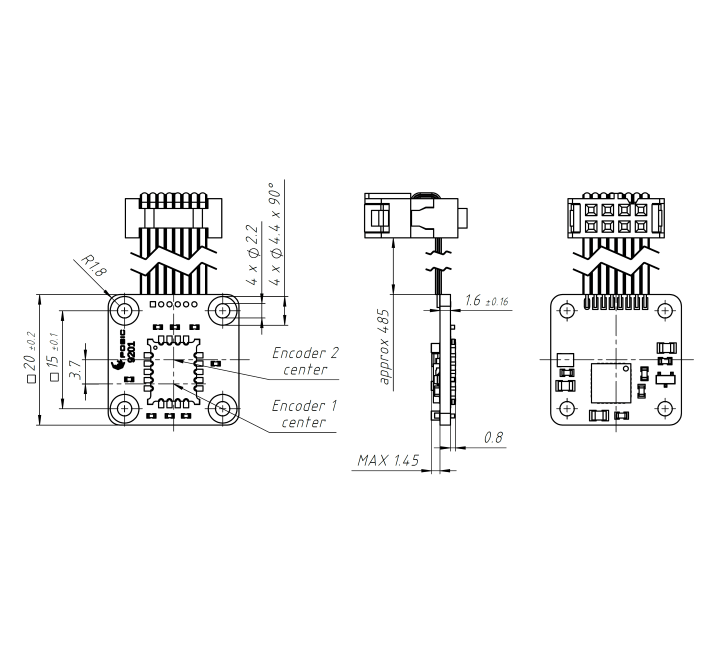

Technical drawing of the absolute inductive encoder AP9201

Dimensions (mm) of AP9201L encoder with flat ribbon cable (pitch 1.27 mm) and 8-pin DIN41651 connector.

Absolute Linear Encoder AP9201L

$ 199.40 Unit Price
Total Price

Display price and ordering code for the encoder

or for the Evaluation & Programming Tool

Programmable by means of POSIC’s

Evaluation & Programming Tool or

pre-programmed ex-factory

Orientation of the encoder with respect to the scale

See datasheet Table 1

Maximum speed for TPLA-scales

See datasheet Table 2

Binary or Gray code

See Datasheet Table 3

LookUp Table to compensate the

periodic non-linearity of the scale

See datasheet table 4

Dual-track Nonius scales

TPLA08, TPLA16 and TPLA32

See Datasheet Table 5

Spacer rings for encoder mounting

See datasheet table 6

Standard cable: 0 to 100°C

High-temp cable: -40 to 125°C

See datasheet Table 7

See datasheet Table 8

For Evaluation & Programming Tool:

8-pin connector DIN 41651

Select the total number of encoders

(The photo always shows 2 encoders

independent of the number of encoders selected)

Blue plastic enclosure. Protects the

Interface Board against mechanical

impact and dust/particles

AP9201L
