Ordering Code

Invalid order code
QtyUnit price
1+$ 71.02
10+$ 53.57
20+$ 45.22
50+$ 37.46
100+$ 33.09
pdf
Datasheet ID1102L
(Size:338.3 KB)
pdf
Datasheet EPT
(Size:332.8 KB)
pdf
Assembly Guide
(Size:356.5 KB)
zip
3D Model 1102
(Size:243.6 KB)
zip
3D Model TPLS04-026
(Size:41.5 KB)
zip
3D Model TPLS05-205
(Size:317.6 KB)

Features:

  • Highly miniaturized: 6.8 x 9 x 1 mm
  • Outputs A quad B
  • Robust against oil grease, liquids, dust, particles
  • Programmable resolution and max speed
  • Optional with holder, cable and connector

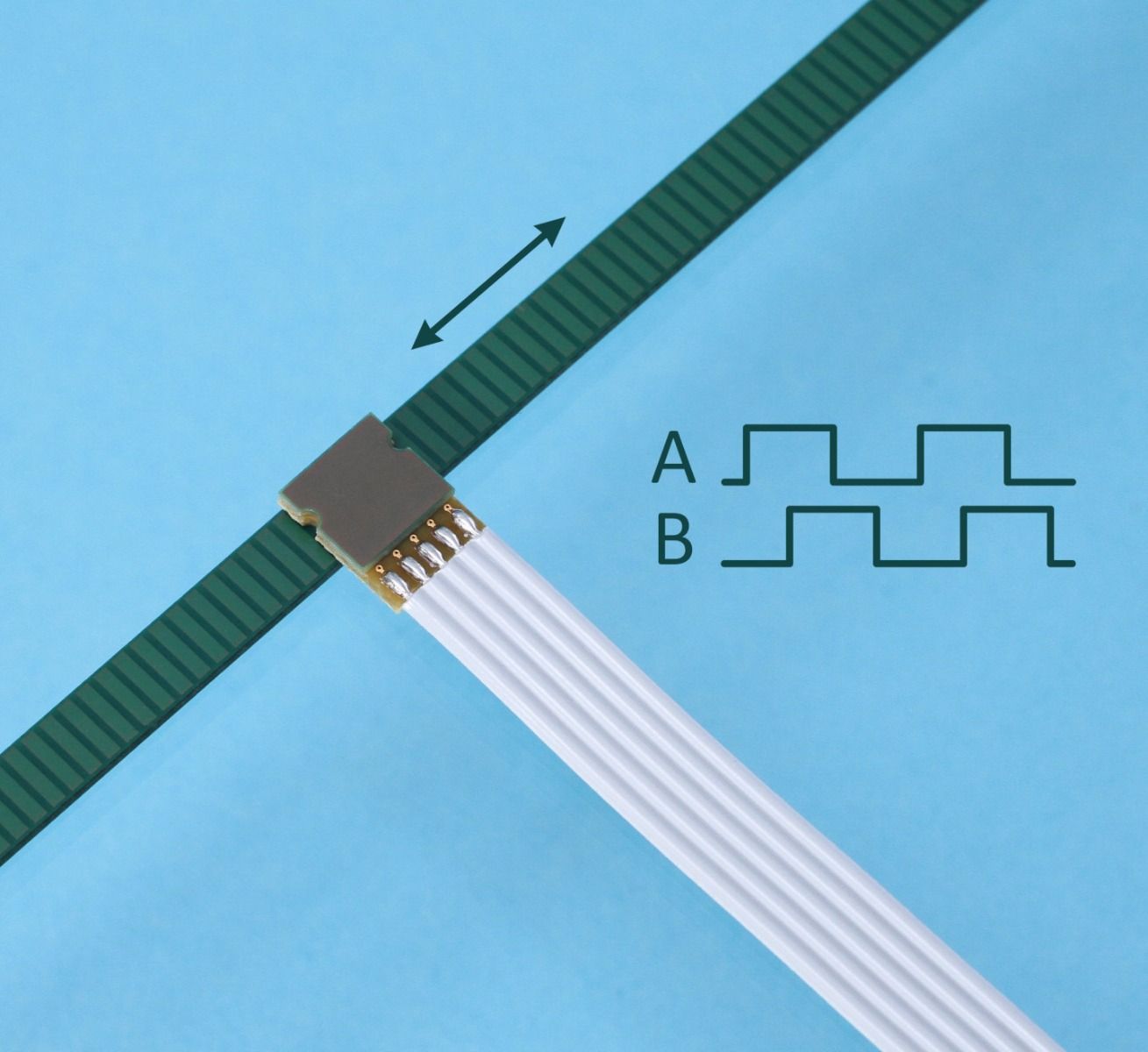

The ID1102L incremental encoder kit consists of an encoder and a linear scale. The encoder is an integrated circuit in a PCB housing. It provides incremental A and B output signals in quadrature. The linear scale is a PCB with passive copper strips.

The resolution and the maximum speed of the encoder are user-programmable or can be programmed ex-factory.

pdf
Datasheet ID1102L
(Size:338.3 KB)
pdf
Datasheet EPT
(Size:332.8 KB)
pdf
Assembly Guide
(Size:356.5 KB)
zip
3D Model 1102
(Size:243.6 KB)
zip
3D Model TPLS04-026
(Size:41.5 KB)
zip
3D Model TPLS05-205
(Size:317.6 KB)

Output signals A quad B
Resolution down to 20 nm
Scale speed 0 up to 30 m/s
A/B frequency 0 up to 1 MHz
Supply 5V, 10 mA
Temperature -20 to 100°C
Airgap 0.1 – 0.6 mm

Single-track linear scale without Index with length 26 mm for POSIC's linear encoders ID1102L and ID4501L

Single-track linear scale without Index with length 205 mm for POSIC's linear encoders ID1102L and ID4501L

Technical drawing of the encoder ID1102

Dimensions (mm) of ID1102 encoder on encoder-holder type B.

Encoder ID1102 with cable

Encoder with flat cable (pitch 1.27 mm) and 6-pin DIN41651 connector.

Technical drawing of the encoder-holder type A

Dimensions (mm) of encoder-holder type A. This holder is only available for evaluation purposes as part of the Evaluation & Programming Tool. If you intend to use holder type A for series production, please select the ID4501 encoder.

Linear Inductive Encoder Kit ID1102L

$ 71.02 Unit Price
Total Price

Display price and ordering code for the encoder or for the Evaluation & Programming Tool

Programmable by means of POSIC’s

Evaluation & Programming Tool or

pre-programmed ex-factory

Orientation of the encoder with respect to the scale

See datasheet Table 1

Maximum speed with scale TPLS01 with period length 1.2 mm

See datasheet Table 2

Resolution with scale TPLS01 with period length 1.2 mm

See Datasheet Table 3

LookUp Table to compensate the periodic non-linearity of the scale

See datasheet table 4

Single-track scales without Index

TPLS04-026 and TPLS05-205

See Datasheet Table 5

Holder on which the encoder is mounted

See datasheet table 6

Standard cable: 0 to 100°C

High-temp cable: -40 to 125°C

See datasheet Table 7

See datasheet Table 8

Select the total number of encoders (The photo always shows 2 encoders independent of the number of encoders selected)

Blue plastic enclosure Protects the Interface Board against mechanical impact and dust/particles
