Products

POSIC's product catalog consists of encoder kits and encoder chips for the measurement of a linear or rotary position of a linear scale or a codewheel. An encoder kit contains a sensor-head that can be glued into the application. An encoder chip is a sensor-head in the form of a surface-mount device that can be soldered on a printed circuit board.The scales and codewheels are printed circuit boards with copper patterns. Below you find a overview of all encoders, scales and codewheels.

View as List Grid

Items 1-10 of 23

per page
Set Descending Direction
Page
  1. Linear Inductive Encoder Kit ID1102L

    $ 76.22
    Total Price

    - Encoder-head with cable

    - Outputs A and B

    - Resolution down to 0.02 µm

    - Speed up to 30 m/s

    - Airgap up to 0.6 mm

    - Encoder size 6.8 x 9 x 0.9 mm

    - Scale up to 550 mm

    Learn More
  2. Linear Inductive Encoder Chip ID4501L

    $ 68.74
    Total Price

    - Encoder-Chip for SMD-assembly

    - Outputs A and B

    - Resolution down to 0.02 µm

    - Speed up to 30 m/s

    - Airgap up to 0.6 mm

    - Encoder size 5 x 6 x 0.8 mm

    - Scale up to 550 mm

    Learn More

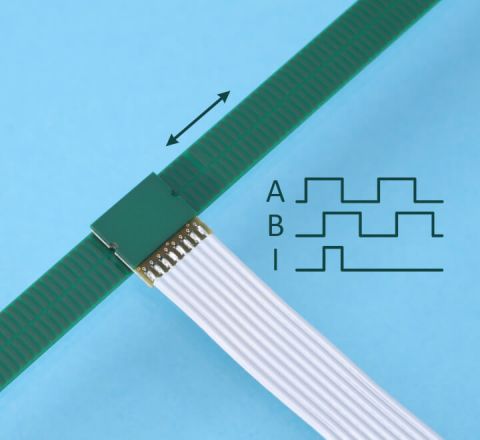

  3. Linear Inductive Encoder with Index IT3402L

    $ 107.42
    Total Price

    - Encoder-head with cable

    - Outputs A, B and Index

    - Resolution down to 0.04 µm

    - Speed up to 11 m/s

    - Airgap up to 0.6 mm

    - Encoder size 11 x 11 x 0.9 mm

    - Scale up to 205 mm

    Learn More
  4. Linear Inductive Encoder Chip with Index IT5602L

    $ 107.42
    Total Price

    - Encoder-Chip for SMD-assembly

    - Outputs A, B and Index

    - Resolution down to 0.04 µm

    - Speed up to 11 m/s

    - Airgap up to 0.6 mm

    - Encoder size 8 x 10 x 0.8 mm

    - Scale up to 205 mm

    Learn More
  5. Rotary Inductive Encoder Kit ID1102C

    $ 76.22
    Total Price

    - Encoder-head with cable

    - Outputs A and B

    - Resolution up to 1 million CPR

    - Speed up to 23'000 RPM

    - Airgap up to 0.6 mm

    - Encoder size 6.8 x 9 x 0.9 mm

    - Standard codewheels OD 28 - 73 mm

    Learn More
  6. Rotary Inductive Encoder Chip ID4501C

    $ 68.74
    Total Price

    - Encoder-Chip for SMD-assembly

    - Outputs A and B

    - Resolution up to 1 million CPR

    - Speed up to 23'000 RPM

    - Airgap up to 0.6 mm

    - Encoder size 5 x 6 x 0.8 mm

    - Standard codewheels OD 28 - 73 mm

    Learn More
  7. Rotary Inductive Encoder with Index IT3402C

    $ 107.42
    Total Price

    - Encoder-head with cable

    - Outputs A, B and Index

    - Resolution up to 1 million CPR

    - Speed up to 8'000 RPM

    - Airgap up to 0.6 mm

    - Encoder size 11 x 11 x 0.9 mm

    - Standard codewheels OD 28 - 73 mm

    Learn More
  8. Rotary Inductive Encoder Chip with Index IT5602C

    $ 107.42
    Total Price

    - Encoder-Chip for SMD-assembly

    - Outputs A, B and Index

    - Resolution up to 1 million CPR

    - Speed up to 8'000 RPM

    - Airgap up to 0.6 mm

    - Encoder size 8 x 10 x 0.8 mm

    - Standard codewheels OD 28 - 73 mm

    Learn More
  9. Miniature Inductive Gear Speed Sensor ID1102G

    $ 76.22
    Total Price

    - Sensor-head with cable

    - Outputs A and B

    - Interpolation up to x 16'384

    - Teeth frequency up to 25 kHz

    - Airgap up to 0.6 mm

    - Sensor dimensions 6.8 x 9 x 0.9 mm

    - Gear: ferrromagnetic, module 0.5

    Learn More
  10. Inductive Gear Speed Sensor Chip ID4501G

    $ 68.74
    Total Price

    - Sensor-Chip for SMD-assembly

    - Outputs A and B

    - Interpolation up to x 16'384

    - Teeth frequency up to 25 kHz

    - Airgap up to 0.6 mm

    - Sensor dimensions 5 x 6 x 0.8 mm

    - Gear: ferrromagnetic, module 0.5

    Learn More
